Non Inductive Cement Ceramic Encased Wire Wound Flameproof Metal Plate Resistors MPR BPR RX27-6 RGC 5W 0.02R

Brand Name : CNAMPFORT

Model Number : SWE5W0R02J

Certification : ROHS,REACH,H/F

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 1~2 weeks

Packaging Details : Bulk

Name : Metal Plate Resistors MPR

Composition : Wire Wound

Max Overload voltage : 700V

Max Working voltage : 350V

Tolerance : 5%

Ohmic Range : 0.01 - 10Ω

TCR : 350ppm/C

Power Rating : 5W

Contact Now

Non Inductive Cement Ceramic Encased Wire Wound Flameproof Metal Plate Resistors MPR BPR RX27-6 RGC 5W 0.02R

Description

MPR series resistors are encased in flameproof ceramic housings to protect the parts against accidental shorting. The radial leads are crimped, holding the body of the part to the board and minimizing the heat rise on the board. Standard tolerances of the MPR series are 5% and 10% with a TCR of ±350ppm/°C. Applications include medium and high voltage electrical equipment for utility and industrial markets, power and motor controls, regulators, and high power/high performance audio equipment.

Features

Small size with high power ratio

Crimped leads keep circuit board temperatures cooler

Low inductance

Low resistance values

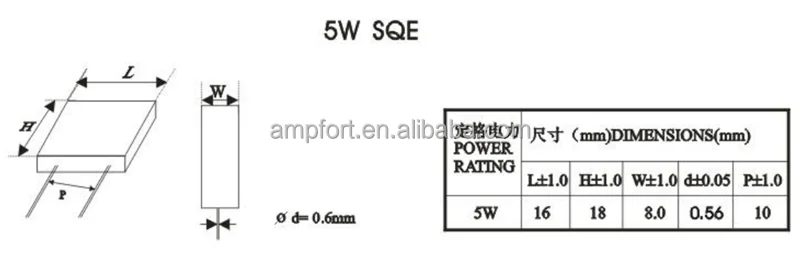

Size

Non Inductive Cement Ceramic Encased Wire Wound Flameproof Metal Plate Resistors MPR BPR RX27-6 RGC 5W 0.02R

Characteristics

Item Tested Requirement
Resistance series tolerance E24 ±5% ±10%
Dieletirc strength AC1500V1minute No flashover insulation breakdown
Solder ability 265±5℃, 2s+0.5s, 1.5~2.0mm R≤±(1%R+0.05Ω), No damage Covered with new solder by95%
Terminal strength 20N 10s±1s R≤±(1%R+0.05Ω), No damage
Short time overload 10x Rated power 5s R≤±(1%R+0.05Ω), No damage
Temp.coefficient ≤±250PPM/℃
Resistance soldering heat 350℃±10℃, 3-3.5mm R≤±(1%R+0.05Ω), No damage
Vibration 10~500Hz, 0.75mm, or 98m/s X,Y,z All 6 R≤±(1%R+0.05Ω), No damage
Load life 1.5h on 0.5h off 1000h R≤±(5%R+0.1Ω), R≥1GQ
Moisture Resistance 40℃ RH 90~95% 96h R≤±(5%R+0.1Ω), R≥100MΩ
Temperature Rise T≤250℃

Photos

RES 0.01 OHM 5% 3W RADIAL,RES 0.03 OHM 5% 3W RADIAL,RES 0.05 OHM 5% 3W RADIAL,RES 0.01 OHM 5% 5W RADIAL, RES 0.02 OHM 5% 5W RADIAL,RES 0.03 OHM 5% 5W RADIAL, RES 0.05 OHM 5% 5W RADIAL ,RES 0.075 OHM 5% 5W RADIAL,RES 0.1 OHM 5% 5W RADIAL

Non Inductive Cement Ceramic Encased Wire Wound Flameproof Metal Plate Resistors MPR BPR RX27-6 RGC 5W 0.02RNon Inductive Cement Ceramic Encased Wire Wound Flameproof Metal Plate Resistors MPR BPR RX27-6 RGC 5W 0.02R
